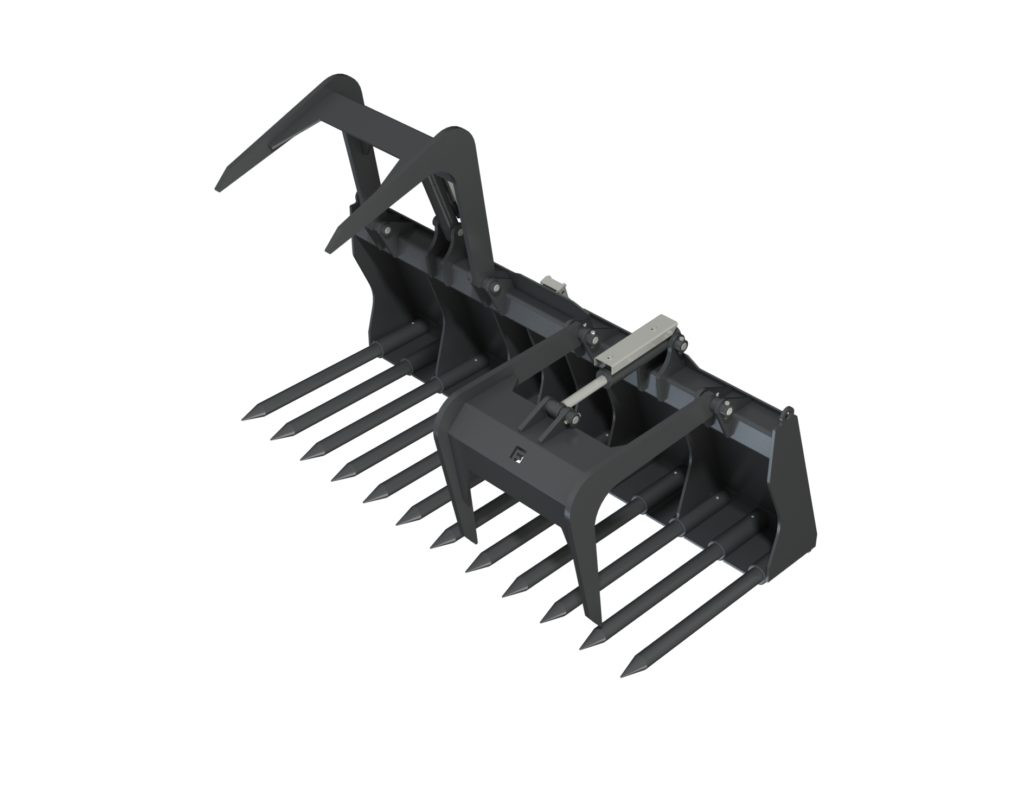

GF Gordini Skid Steer Track Loader 2050mm Extreme Duty Hydraulic Grapple Bucket

Details

Suit:
4-6t Skid Steer or Track Loader
Mount:
Universal Skid Steer
Bucket Width:
2050mm
Weight:
580kg
Hyd Flow:
30-50 L/min
Max Pressure:
200 Bar

From $10,835.00 + GST $9,850.00 + GST
(You save $985.00)
Weight:
580 KGS

Product Description

GF Gordini heavy duty grapple buckets are Italian built and feature strong removable and replaceable lower tynes which give the ultimate ability to collect shrub and debris while leaving sand and material behind.

The top dual grapples are interdependent to allow closing uneven objects, and includes a flow control valve to slow down the machine flow, if your machine is not fitted with adjustable flow.

The heavy duty grapple includes free hydraulic hoses and couplings which are suitable for most machines, however you may need to extend or shorten the hoses to suit your machine once fitted (at your additional cost).



Model PH185 PH205
Bucket Width 1850mm 2050mm
Skid / Loader Size 3-4.5t 4-6t
Bucket Weight 490kg 590kg
Oil Flow Range 10-60 L/min 10-60 L/min
Max Pressure 3200psi 3200psi
Number of Tynes 12 14
Overall Size 185cmx73cmx86cm 205cmx89cmx88cm
